CHROMA Round Bar Cabinet Pull
CHROMA Round Bar Cabinet Pull
Size is measured center-to-center (C-C), not overall length. View the size guide →
Solid brass · Mounting screws included · 10-year limited mechanical warranty

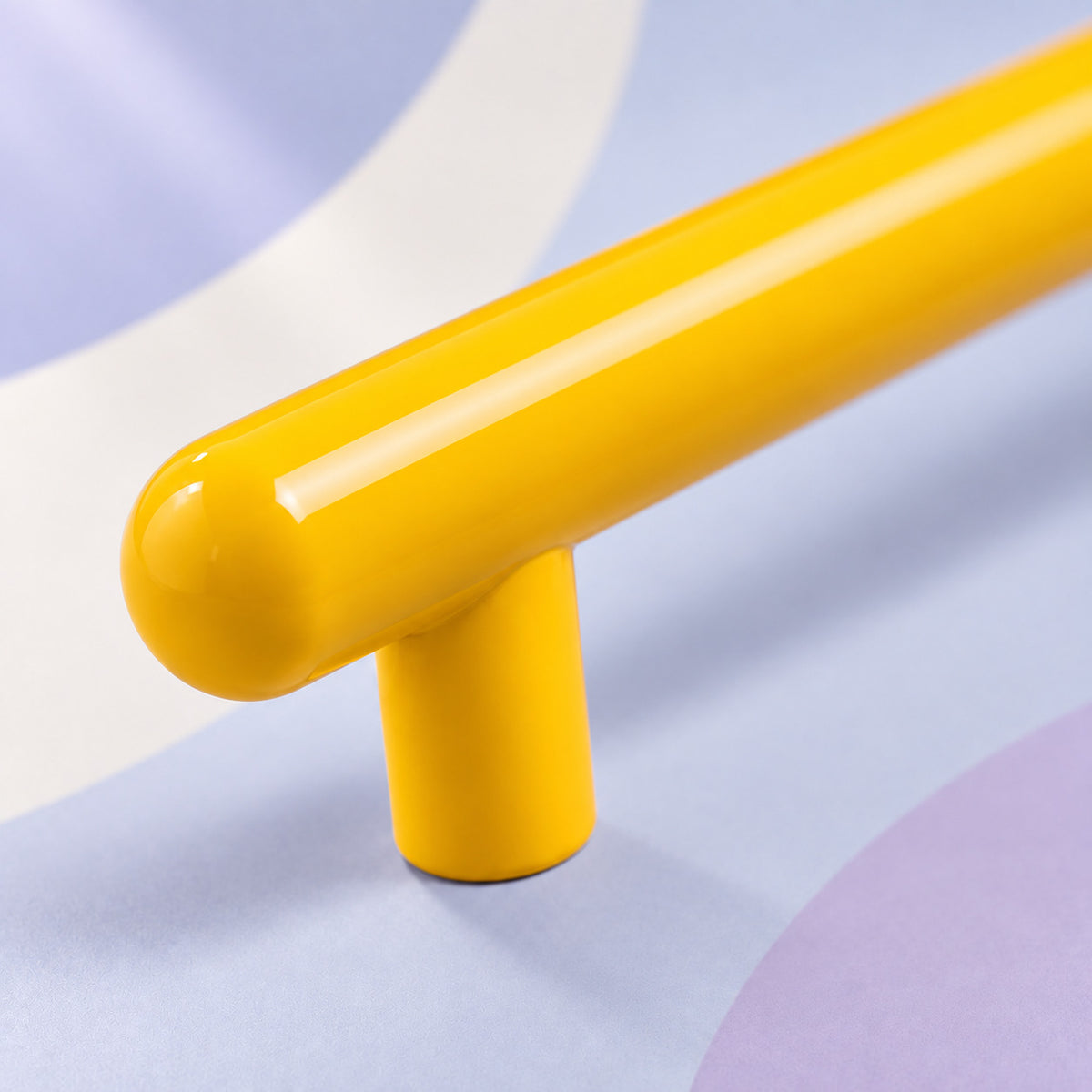

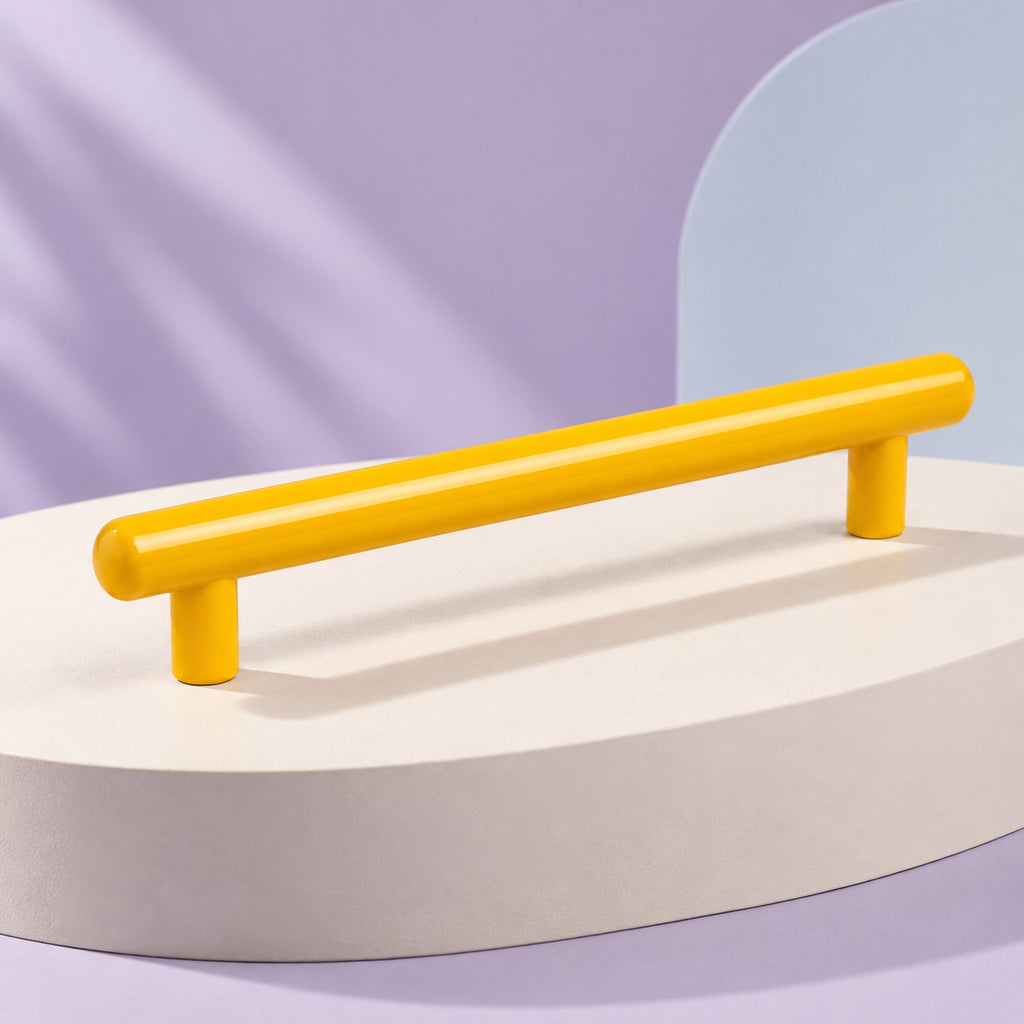

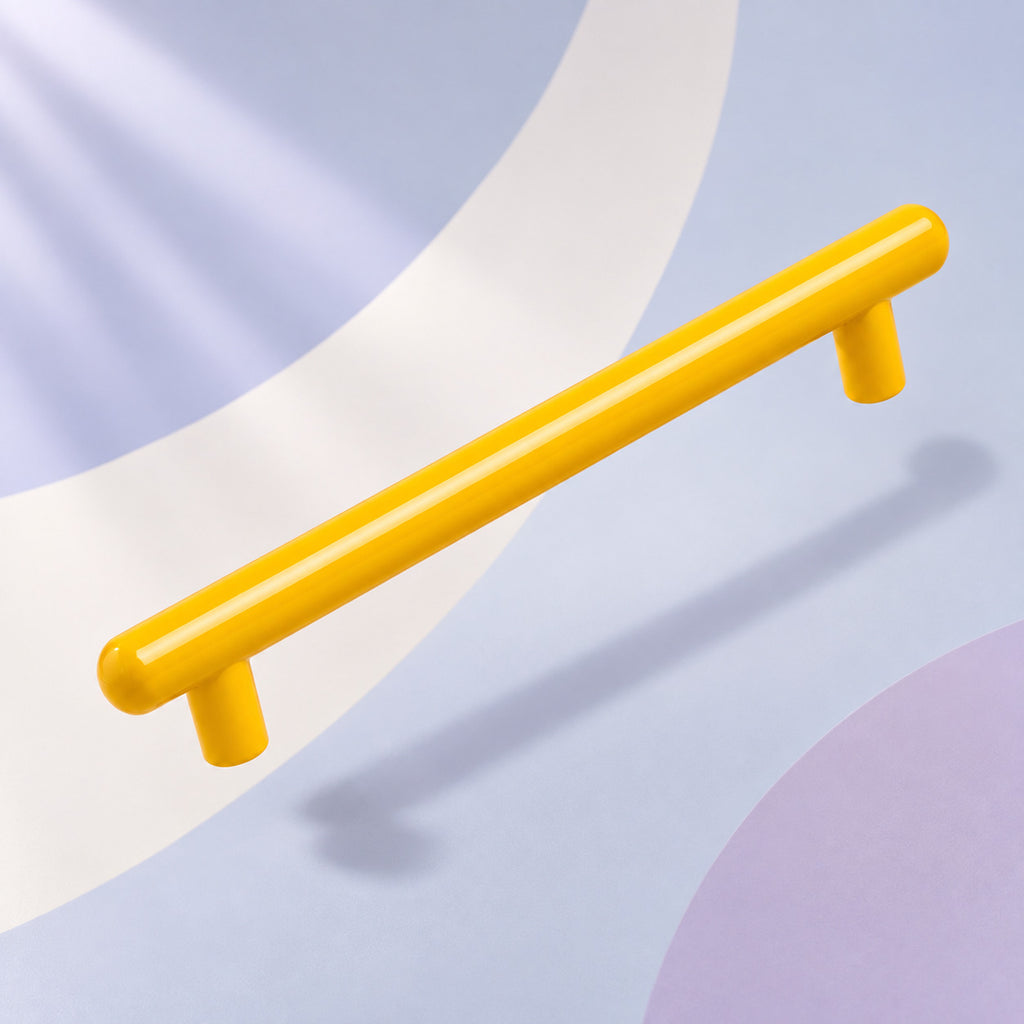

CHROMA is a solid brass cabinet pull with a restrained round-bar profile and a choice of four colors. Two mounting holes secure it to the cabinet front. Select the required hole spacing and finish above, then review the corresponding dimensions.
Design details
- Use: Cabinet doors, drawers and furniture
- Material: Solid brass
- Country of origin: China
- Finish: Van Gogh Yellow, Klein Blue, Matte White, Vermilion Red. Select the required finish and size in the variant selector; availability varies by variant.
Design & cabinet styling
The simple bar allows color to carry the design. Pair it with quiet cabinet fronts for a defined accent, or repeat the same color through CHROMA knobs and T-bars for a coordinated scheme.

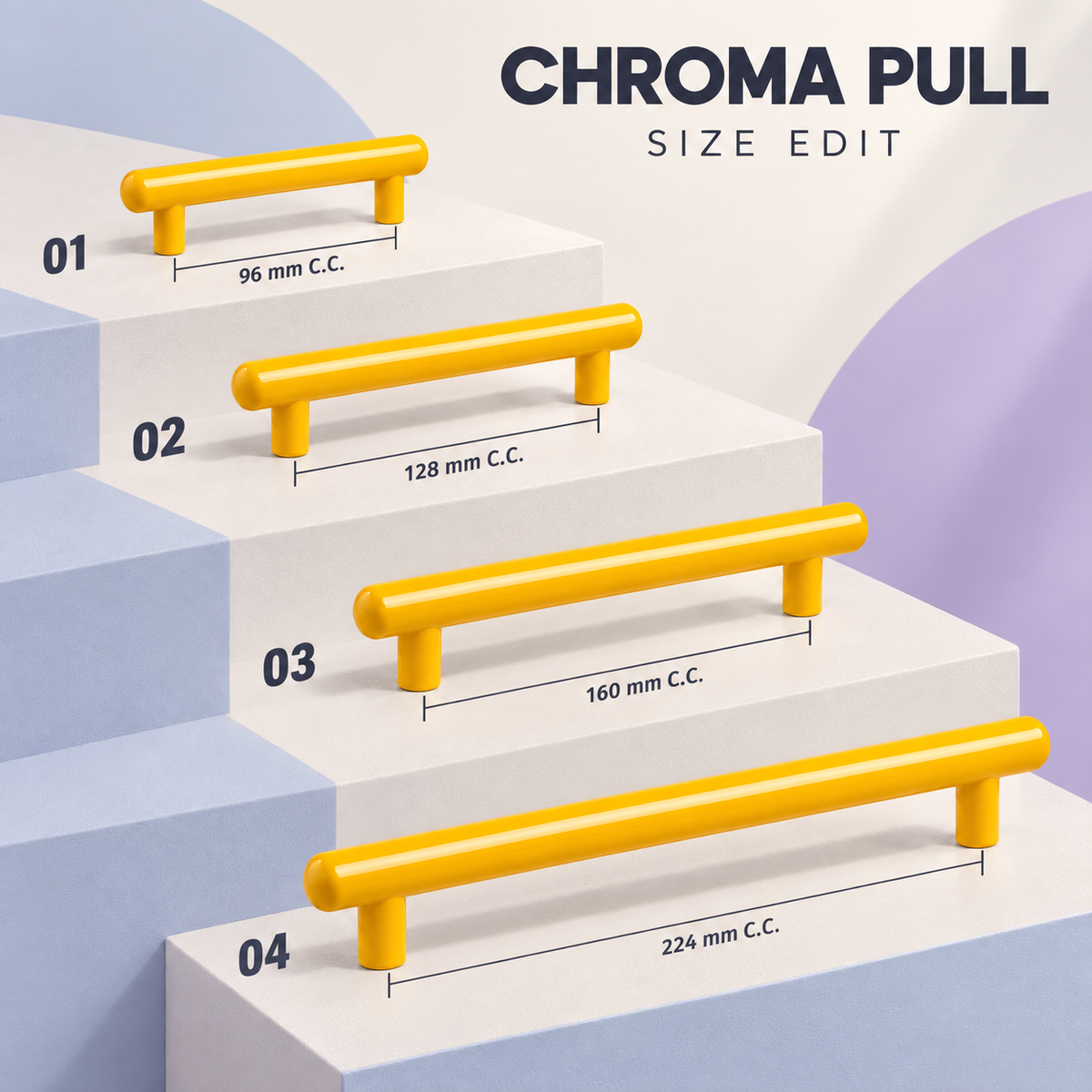

Measurements
Measurements are shown in millimetres and inches. Select the exact size and finish above before ordering.
| Selected size | Overall | Projection | Weight |
|---|---|---|---|
| 96 mm C-C (3.78") | 130 mm (5.12") | 30 mm (1.18") | 138 g |
| 128 mm C-C (5.04") | 160 mm (6.30") | 30 mm (1.18") | 168 g |
| 160 mm C-C (6.30") | 200 mm (7.87") | 30 mm (1.18") | 208 g |
| 224 mm C-C (8.82") | 260 mm (10.24") | 30 mm (1.18") | 265 g |
Grip & cross-section
- Grip diameter: 12 mm (0.47 in)
Selection questions
Are color and hole spacing separate choices?
Yes. Select both the finish and the C-C size available in the variant selector. Check that exact combination before ordering.
What is the base material?
The confirmed base material is solid brass. The color names identify finish options and do not by themselves specify the coating process.
Installation & care
Installation — two-hole pulls
For replacements, match the center-to-center (C-C) distance between the existing screw holes; this is different from overall length. Check panel thickness and clearance before drilling. Hold the pull outside the cabinet front and insert both screws from inside. Start the threads by hand, align the pull and tighten evenly with a hand screwdriver. Do not overtighten.
Mounting screws
Standard 25 mm mounting screws are included. Measure the total panel thickness at the fixing point, including any applied or double-panel layers. If you need a different screw length, add the total thickness to your order notes or contact us before ordering so we can confirm the appropriate option.
Care
Wipe with a clean, soft cloth. For marks, use a lightly dampened cloth with mild soap, remove any residue and dry thoroughly. Avoid abrasive pads, metal polish and harsh cleaners. Do not leave moisture or cleaner on the hardware.
Coordinate the collection
Compare the individual dimensions and fixing formats of other CHROMA designs.
Project support
For project support, send the product name, finish, size, quantity, project location and target order date. Include panel thickness and existing hole spacing for replacements. Contact our team or explore the Trade program.
Warranty & Support
Covered by OBJECT & TONE's 10-Year Limited Mechanical Warranty for manufacturing and mechanical defects under normal indoor residential use. For planning and support, see our Hardware Guides, Finish Guide, Care & Installation, Shipping & Returns, or Contact.
